Game Boy Advance Screen Showdown: AGB-101 vs. AGS-001 vs. AGS-101 – Which is Best?
If you’re a Game Boy Advance enthusiast, you know that not all screens are created equal. Nintendo released multiple GBA models with different display technologies, each with its own strengths and weaknesses. In this post, we’ll compare the AGB-101 (GBA SP AGS-101 backlight mod), AGS-001 (frontlit SP), and AGS-101 (backlit SP)—complete with side-by-side photos—so you can decide which one is right for you.
1. AGS-001 (Frontlit GBA SP) – The Compromise Screen
How It Works:
The AGS-001 uses a transflective LCD with a frontlight—meaning it has a semi-reflective layer and a light panel in front of the screen (not behind it).
Pros:
✅ Visible in most lighting conditions (unlike the original unlit GBA)
✅ Long battery life (~10 hours) – More efficient than backlit screens
✅ Cheaper to buy than AGS-101
Cons:
❌ Washed-out colors (frontlight makes the image look hazy)
❌ Poor contrast – Blacks appear gray
❌ Glare issues under bright light
Best For: Budget-conscious gamers who don’t mind the weaker image quality.
2. AGS-101 (Backlit GBA SP) – The King of Clarity
How It Works:
The AGS-101 uses a true backlit LCD (like modern screens), where the light comes from behind the pixels instead of in front.
Pros:
✅ Vibrant colors & deep blacks – Huge improvement over AGS-001
✅ No glare issues – Looks great in any lighting
✅ Crisp, bright image – Best GBA screen until modern IPS panels
Cons:
❌ Shorter battery life (~7 hours) – Backlight consumes more power
❌ Rare & expensive – Only sold in later SP models (mostly US/EU)
Best For: Collectors and players who want the best official Nintendo screen.

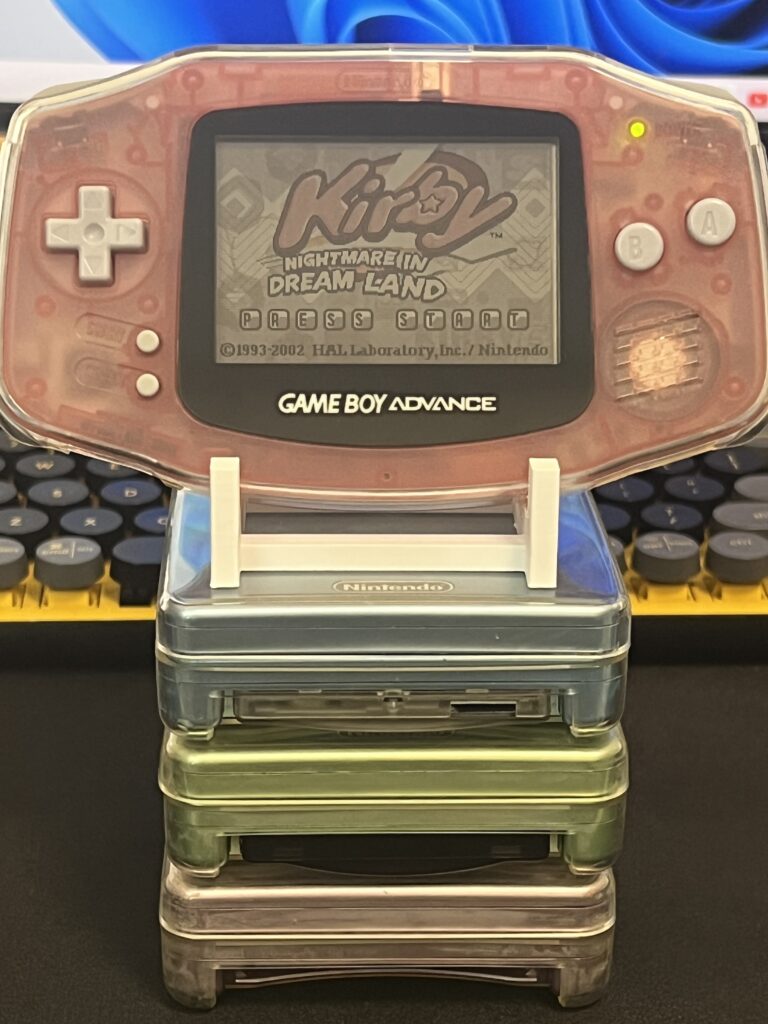

3. AGB-101 (Backlight-Modded Original GBA) – The Best of Both Worlds?
How It Works:
This is a modded original GBA (AGB-001) using an AGS-101 screen, giving it a backlight while keeping the classic form factor.
Pros:
✅ Backlit brightness & color quality (same as AGS-101)
✅ Ergonomic design – More comfortable than SP for long sessions
✅ Customizable – Can be paired with IPS upgrades for even better visuals
Cons:
❌ Modding required – Not stock, must be installed manually
❌ Battery life varies (~6-8 hours, depends on power regulator)
❌ More expensive than stock GBAs
Best For: Modders and players who prefer the original GBA’s grip but want a backlight.

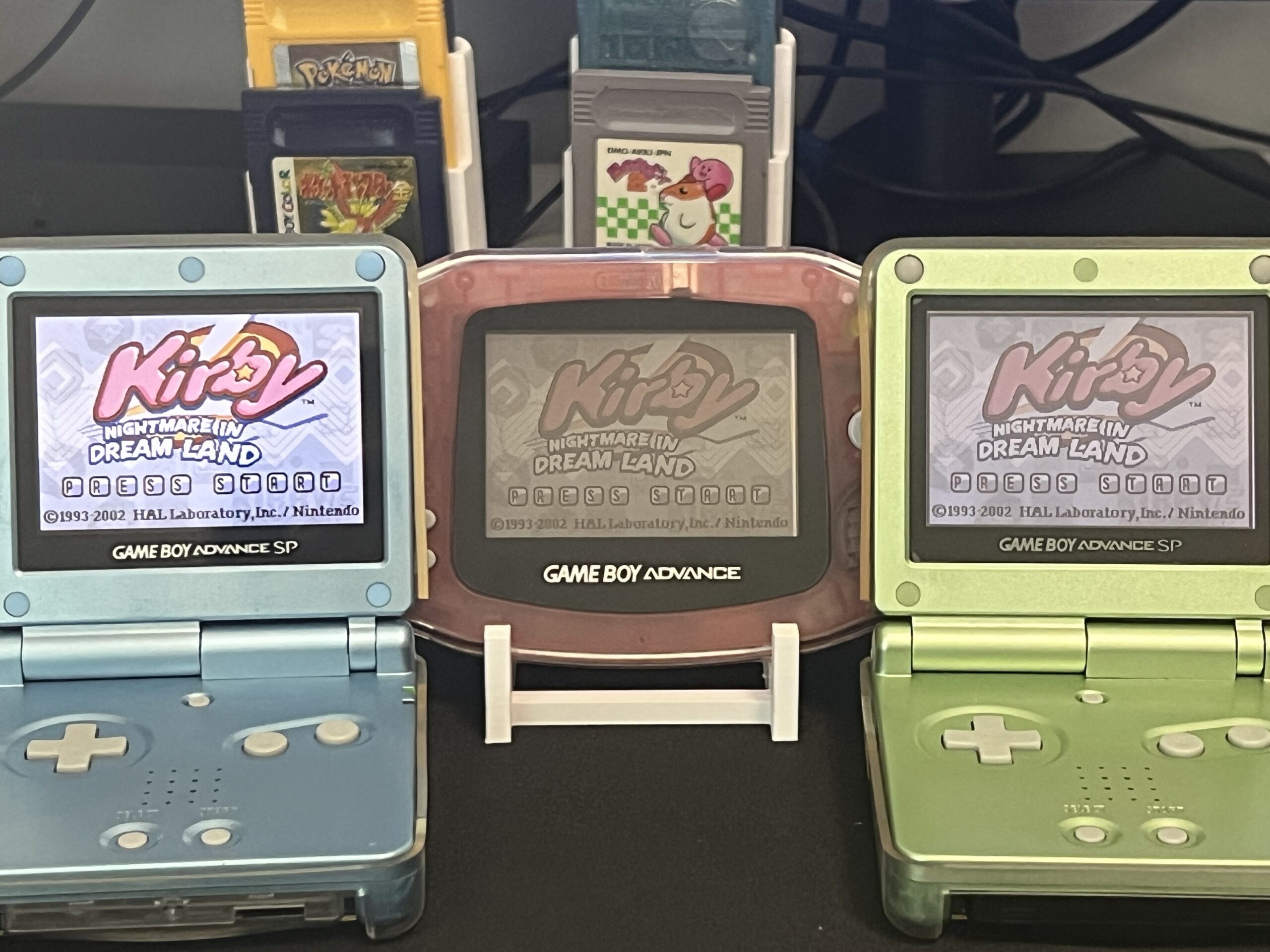

Side-by-Screen Comparison (Photo Breakdown)
(Refer to attached comparison photo for visual differences.)
- AGS-001 (Frontlit): Noticeably dimmer, grayish blacks, visible light bleed.
- AGS-101 (Backlit): Rich colors, deep blacks, no glare.
- AGB-101 (Modded): Same as AGS-101 but in a horizontal GBA shell.
Battery Life Comparison
| Model | Screen Type | Avg. Battery Life |
|---|---|---|
| AGS-001 | Frontlit | ~10 hours |
| AGS-101 | Backlit | ~7 hours |
| AGB-101 | Backlit (Mod) | ~6-8 hours (depends on mod) |
Final Verdict: Which One Should You Choose?
- Best Image Quality: AGS-101 or AGB-101 (backlit)
- Best Battery Life: AGS-001 (frontlit)
- Best Comfort: AGB-101 (original GBA form factor)
- Best Value (Stock): AGS-001 (cheapest official option)
If you’re modding, the AGB-101 is the ultimate choice—but if you want an untouched Nintendo product, the AGS-101 is still king.
Which GBA screen do you prefer? Let us know in the comments!
(Want to see more retro tech comparisons? Subscribe for updates!) 🎮
